Package Content

• UVC84 Camera

• VCR20 remote control

• Power adapter

• Wall bracket and accessories

• 7m USB cable

Camera

• 4K sensor

• 80° FoV

• 36X HD Zoom, 12X optical plus 3X

digitalPan: ±100°, Tilt: +40°, -90°

• 9x Camera presets

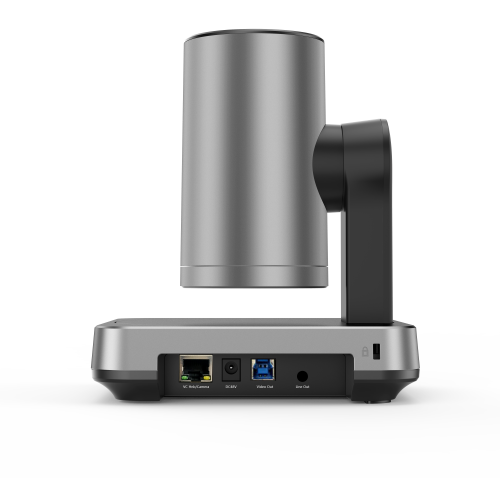

UVC84 Connections

• 1 x USB2.0 Type-B port

• 1 x USB2.0 Type-A port

• 1 x Yealink microphone port (RJ-45)

• 1 x 3.5mm line-out port

• 1 x Power port

• 1 x Security lock slot

• 1 x Reset slot

Product Specification

• UVC84 Camera：

- Sleeping Dimensions (W.D.H): 156 mm x 156 mm x 183 mm

- Working Dimensions (W.D.H): 156 mm x 156 mm x 156 mm

- Working Height: 156 mm - 192 mm

• N.W: 2.9 kg

Other Physical Features

• External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output

• Operating humidity: 10 - 95%

• Operating temperature: 0 - 40℃
