Audio Output

• Stereo speakers

• Frequency respond: 100Hz-20KHz

• S/N: ≥ 70dB

• RMS: 10W

Audio Input

• 1 x VCH (RJ45), supports PoE (802.3af)

• 1 x 3.5mm Line-in

Other Interfaces

• Built-in Bluetooth (for future use)

• Power Input:

- DC 48V/0.7A

- PSE 54V 0.56A or PoE 48V 0.27A

Physical Features

• Dimension (W.D.H): 500mm x 60mm x 86mm

• Operating humidity: 5~90%

• Operating temperature: 0~40°C

Package Includes

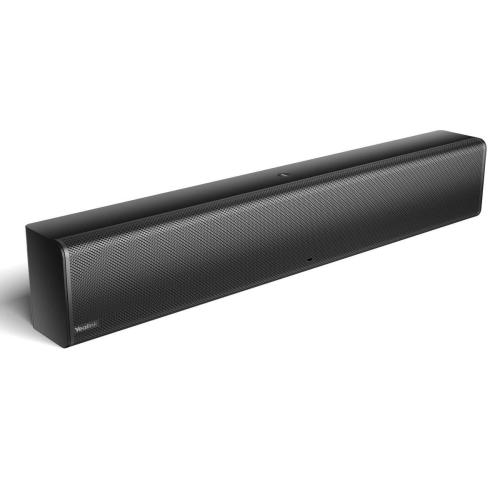

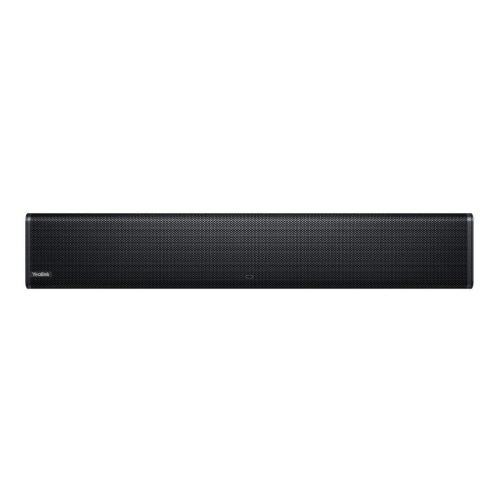

• MSpeaker II

• Power Adapter

• 3m audio cable (3.5mm)

• Wall Mount Bracket

• Quick Start Guide
