Mini Light Pad for 4 Framed Small Picture Slides

reflecta presents a hand LED light pad L130 for both mobile and stationary use

The lighting which is both even and color correct, is an important factor when viewing, sorting and digitizing slides and other transparency images. For those who work with film material on a regular basis, such as slides and negatives, the use of a light panel is inevitable. The German specialist for presentation technics from Baden Württemberg, reflecta GmbH in Eutingen near Stuttgart, has had a large assortment of light pads their assortment for several years now, and are extending their portfolio to add a light and handy, as well as portable model.

Mobility thanks to a compact size and battery source

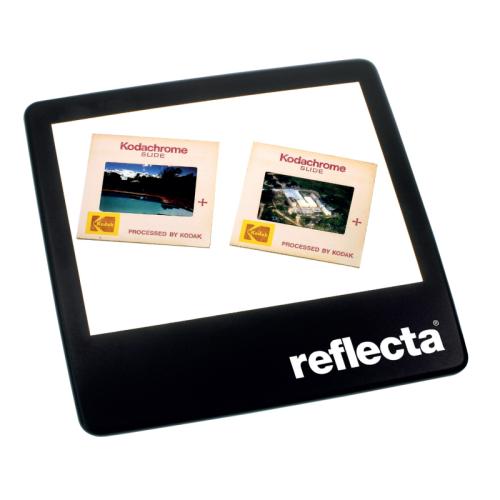

The reflecta LED light pad L130 measures 155 x 150 x 14 mm externally, and weighs in at only 260 grams, making it the smallest light pad on the current market. The lighting area is 125 x 100 mm big, and offers space for 4 framed small picture slides, or 2 midformat slides size 6x6 cm. The mini light pad is ideal for mobile use due to its small size. It’s easily stored on any desk as a handy device to be used at any minute.

The small LED light pad L130 is powered by six 1.5V AAA Alkaline batteries, and can be operated in almost any given situation. For longer periods of use, a 9V adaptor can be used, to avoid using up the batteries.

Homogeneous Light Distribution

The LED technology ensures a uniform light distribution of the entire light pad, so that even the far corners of the lighting surface can be used to view positives. The color temperature of 5000K (+/- 270K) allow for lighting similar to daylight, as well as correct color replication. There is no need to worry about changing the light source, as the LEDs have a life span of approximately 10.000 hours.

Product information

- Viewing area: 12.5 x 10 cm

- Light source: LEDs

- LED lifetime: ca. 10.000 hours

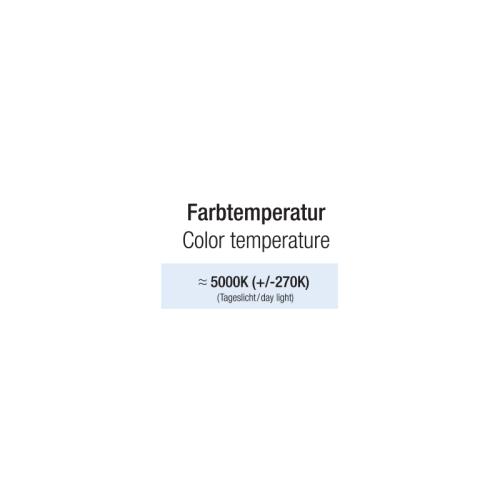

- Color Temperature: 5000 K (+/- 270 K)

- Power supply: 6x 1.5V AAA Alkaline battery or power adapter 9V 1A (both not included in delivery)

Technical details

- Weight: ca. 260g

- Dimensions: 15.5 x 15 x 1.4 cm

- Power supply: 6x 1.5V AAA Alkaline battery or power adapter 9V 1A (both not included in delivery)

- Working temperature: 5-55°C
