PLATINET WALLBOX  ELECTRIC VEHICLE WALLBOX EV/PHEV AC TYPE 2 11KW 7M CABLE BUSINESS LINE [45805]

PWB11KWS is the perfect solution for users who value convenience, efficiency, and technology. Our product comes with a 7-meter long Type-2 plug cable, providing flexibility in accessing various vehicle models.

Advanced technical features for maximum performance:

3P+N+PE power and rated voltage of 400V AC ensure stable and safe charging.
11kW rated power provides fast charging, saving you time.
LED indicator (green/yellow/red) for intuitive monitoring of the charging status.
RFID reader compatible with Mifare ISO/IEC 14443 A enables easy access management.
Innovative technological solutions:

Wi-Fi and OCPP (1.6 Json, optionally 2.0) provide remote support and integration with existing systems.
The EVchargo app allows for configuration of charging parameters, user billing, RFID card management, and energy consumption data export.
Advanced electrical protection safeguards against various electrical threats, ensuring the safety of both users and the device.
Simple and universal installation:

Wall or pole mounting options available.
Compact dimensions (325x181x87mm) and lightweight (3.2kg net, 4.0kg gross) allow for easy installation in various locations.
Durability and reliability:

IP65 protection rating and IK10 impact resistance.
Suitable for operation in a wide range of temperatures (-30°C to +50°C) and humidity levels (5%~95%).
CE certification confirms compliance with the highest European standards.
Our wallbox is the ideal solution for homes, businesses, and public charging points. It makes charging your electric vehicle simpler, faster, and more efficient. Choose the future of mobility with our advanced EV/PEV charging device!

Technical Specification:
Power Supply: 3P+N+PE
Rated Voltage: 400V AC
Rated Current: 16A
Frequency: 50/60Hz
Output Voltage: 400V AC
Maximum Output Current: 16A
Rated Power: 11kW

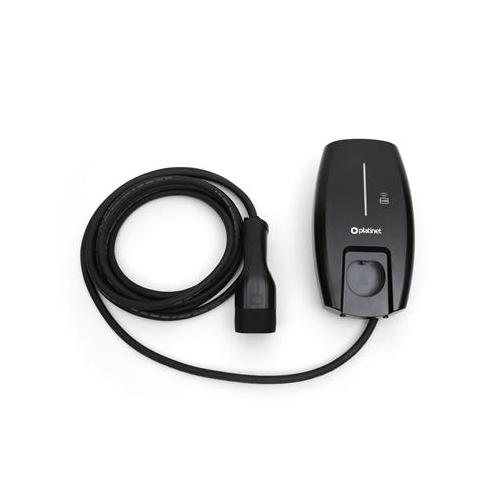

Charging Connector: Type 2 cable
Cable Length: 7m
LED Indicator: Green/Yellow/Red
RFID Reader: Mifare ISO/IEC 14443 A
Startup Mode: Plug&Play/RFID card/App
Communication: Wifi/Ethernet
OCPP: OCPP 1.6 Json (OCPP 2.0 optional)
RCD: 6mA DC
Protection Rating: IP65
Impact Protection: IK10
Electrical Protection: Overcurrent, residual current, overvoltage, undervoltage, overtemperature, grounding
Certification: CE
Installation: Wall-mount/Pole-mount
Operating Temperature: -30°C to +50°C
Operating Humidity: 5%~95%
Operating Altitude <2000m
Product Dimensions: 325*181*87mm (H*W*D)
Packaging Dimensions: 434*324*210mm (L*W*H)
Net Weight: 3.2kg
Gross Weight: 4.0kg

Package includes:
AC charger, isolated clamps for three-phase power (5 pcs), screws and mounting plugs (6 pcs), RFID cards (5 pcs), M4 hex key (1 pcs), user manual, mounting template
